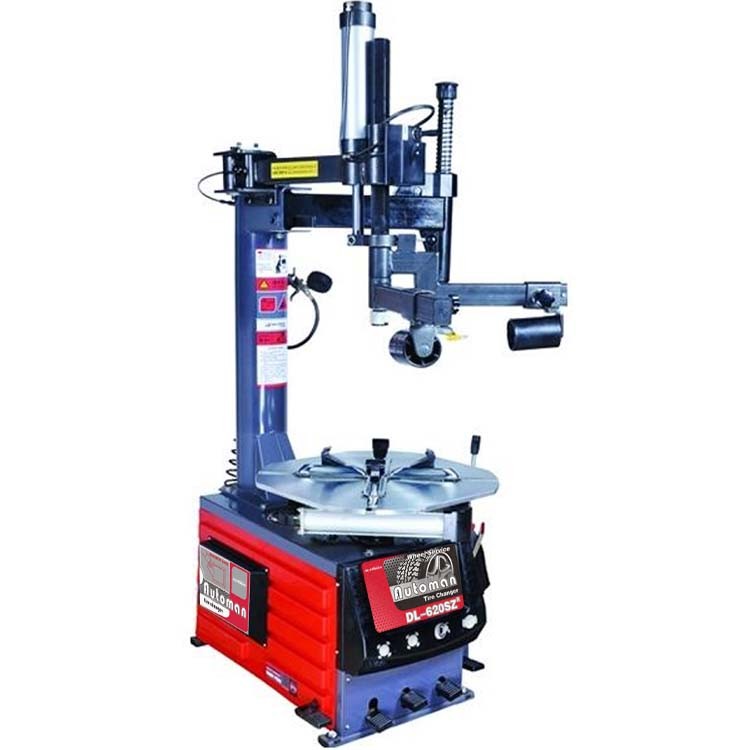

automatic tyre changer for 12’’-24’’ wheels, with swing arm and turntable shape Complete with automatic lubricator, tyre lever, grease container holder and grease brush.
Proven and reliable semi-automatic swing arm configuration and manual locking system of the vertical working arm
■ 2 way rotation self-centering turntable, also ideal to be used with optional motorcycle adapters UMA (clamping capacity7”-23”);
■ Automatic lubricator and pedal protection supplied in standard configuration ■ Tool head complete with plastic protection inserts for alloy rims ■ Reinforced body to be coupled with the patented Low profile tyre mounting Tool.
Clamping capacity:12” - 24” External clamping : 12” - 22” Internal clamping: : 14” - 24” wheel diameter: 1000 mm (39.5”) Max wheel width: 320 mm (12.5”) Bead breaker force: 2800 kgf (6175 lbf) Turntable speed:10 rpm Motor: 1KW, Power: 240V,50Hz. Operating pressure:8Bar(116PSI)
Please send us roll forming profile with specifications, thickness and other processing requirements for our customized machine.If you need standard machine, please send us the model you want.
